Stainless Steel Cable Winch Puller With Gasoline Engine Powered 5RPM

Name: Stainless Steel Cable Winch Puller With Gasoline Engine Powered 5RPM
Brand: Donghuan
Price: 1 USD

Buy cheap Stainless Steel Cable Winch Puller With Gasoline Engine Powered 5RPM product

Brand Name : Donghuan

Model Number : JJQ-80

Certification : ISO

Place of Origin : Ningbo,China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 sets per month

Delivery Time : 3-5 workdays

Packaging Details : Exported Plywood Case

Name : Cable Winch Puller

Rotation direction : corotation

rotational Speed : 5RPM

Traction Speed : 3 M/MIN

Tractive force : 8T

Type : Gasoline Engine Powered

Contact Now

Stainless Steel Cable Winch Puller With Gasoline Engine Powered 5RPM

Cable Winch Puller Application

This kind of Cable Winch Puller can be applied to the lifting or pulling operating in construction water conservancy, forestry, mining and quay places etc…

Specifications:

Item number	Model	Rotation	Gear	(RPM)	(M/MIN)	(T)	(KW)	(MM)	(KG)

		direction		rotational	Traction	Tractive	Power	Outline	Weight

				speed	speed	force		size
9121	JJQ-3Q		Ⅰ	9	4	3	4.04	840x450x500	82

	6HP	corotation	Slow

	Gasoline
			Ⅱ	16	6.6	1.8		780x450x500	85
	engine
			Fast

		reversal	Reverse			No lifting
09121A	JJC-30		Ⅰ	11.5	5	3	2.94	840x600x500	108
		corotation	Slow
	170F

	Diesel
			Ⅱ	21	9	1.8
	engine		Fast	21	9	1.8
		reversal	Reverse
						No lifting
09121B	JJD-30		Ⅰ	8.5	4	3	3	770x600x460	108
		corotation	Slow
	3KW
			Ⅱ	10.5	6.5	1.8
	Electromotor		Fast	10.5	6.5	1.8
		reversal	Reverse
						No lifting
9123	JJQ-50		Ⅰ	6.5	4	5	6.61	1000x550x520	135
		corotation	Slow
	9HP

	Gasoline
			Ⅱ	16	9	2.2
	engine		Fast	16	9	2.2
		reversal	Reverse
						No lifting
09123A	JJC-50		Ⅰ	8	4.5	5	4.41	1000x750x600	168
		corotation	Slow
	6.6HP

	Diesel
			Ⅱ	19	11	2.3
	engine		Fast	19	11	2.3
		reversal	Reverse
						No lifting
09123B	JJD-50		Ⅰ	5.5	3.5	5	4	1000x850x520	160
		corotation	Slow
	4KW
			Ⅱ	14	8	3
	Electromotor		Fast	14	8	3
		reversal	Reverse
						No lifting
9125	JJQ-80		Ⅰ	5	3	8	9.6	1000x550x520	168
		corotation	Slow
	13HP

	Gasoline
			Ⅱ	9	5	4.5
	engine		Fast	9	5	4.5
		reversal	Reverse
						No lifting
09125A	JJC-80		Ⅰ	7	4	8	7.86	1000x750x630	230
		corotation	Slow
	10.5HP

	Diesel
			Ⅱ	13	7.5	4
	engine		Fast	13	7.5	4
		reversal	Reverse
						No lifting

Configuration:
Uses:suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:
Power can be configured according to used requirements.

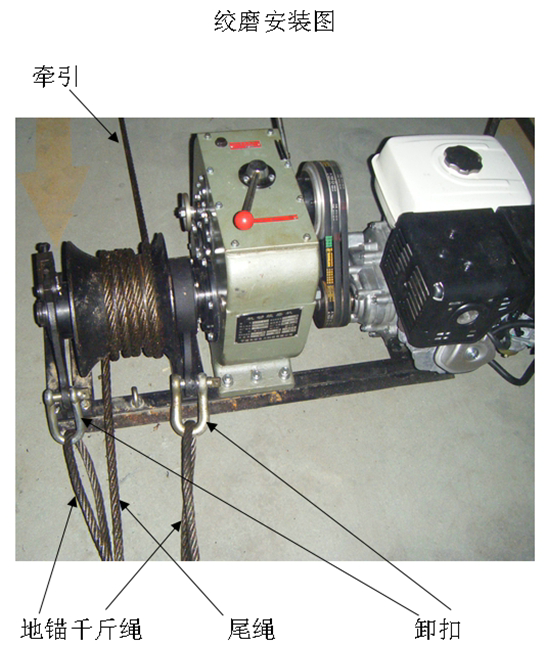

Cable Winch Puller Instalition
